Inspect a Raja Ampat mooring in four places before you lie to it: the surface float and pick-up line, the riser between float and seabed, the shackles and thimbles at every junction, and the fixing in the substrate. The whole system is only as strong as the worst of those four, and in a tropical marine environment the worst one is usually invisible from the deck. Ten minutes in the water is the difference between a quiet night and a hull on a reef.
Why the deck view tells you almost nothing
From the bow, every mooring looks the same: a float, a line, a loop to take. What the deck view hides is the part doing the work. A buoy with a pristine float can be riding on a riser that has chafed through eighty per cent of its diameter at the point where it passes the last shackle. A buoy that looks battered can be sitting on new tackle installed six weeks ago.
The conservation mooring network in Raja Ampat was installed to stop anchors destroying coral, and it does that job well. But it is maintained by conservation programmes, park management and dive operators on their own cycles, not by a harbour authority running a schedule. Condition therefore varies enormously between sites and between seasons, and no published list stays current.
The four-point inspection
1. Surface float and pick-up
Look for a float that is holding its shape and not waterlogged — a sinking float loads the riser differently and drags the whole system. Check the pick-up line for sun damage, which shows as stiffness and a chalky surface. Assume the pick-up line is the weakest element in the system, because it usually is: it lives in ultraviolet light and gets handled by everyone.
2. The riser
Follow it down. You are looking for abrasion where the riser passes any hard point, for marine growth heavy enough to add real load, and for any section where the lay has opened up. On chain risers, look for wastage at the links that sit on the seabed and move with the tide — those wear fastest and they are the ones nobody sees.
3. Shackles, thimbles and swivels
Every junction is a candidate failure point. Look for missing or unmoused pins, for corrosion where dissimilar metals meet, and for thimbles that have worked free of their eye. A shackle pin that has backed halfway out is a common and entirely preventable finding.

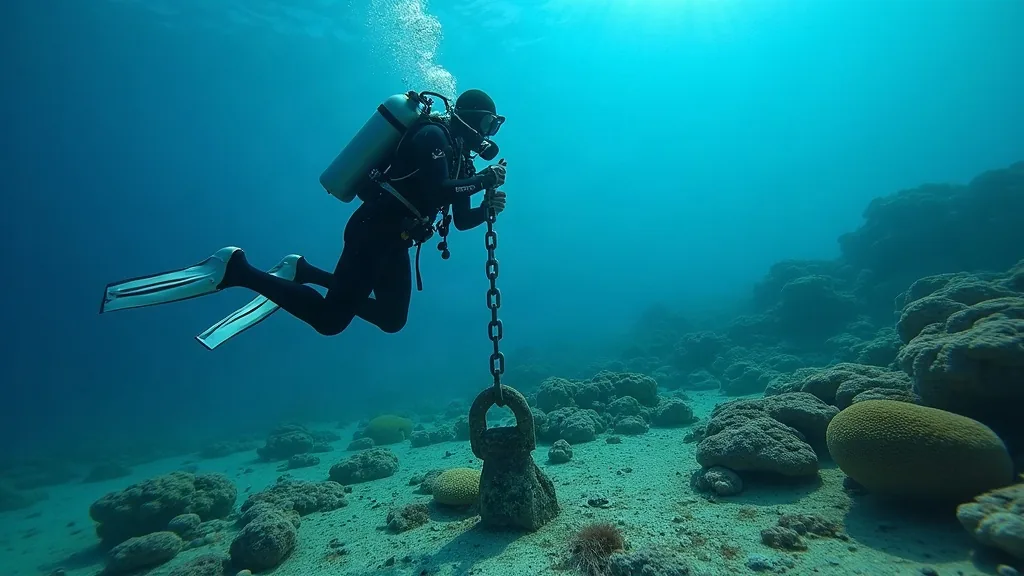

4. The fixing
Get to the bottom of it. A drilled and grouted pin should be solidly in rock with no movement. A sand screw should be fully buried. A block should be sitting flat and not perched on coral it has already crushed. If the fixing has been dragged, you will see the scar. If you cannot see the fixing at all because of depth or visibility, you have not completed the inspection.
What to do with what you find
| Finding | Decision |
|---|---|
| All four points sound, rating known and adequate | Use it, with your own bridle to the eye rather than to the pick-up line. |
| Sound tackle, unknown rating | Acceptable for a light hull in settled conditions with an anchor watch. Not acceptable for a heavy hull or an unsettled forecast. |
| Any single point questionable | Do not use it. Report it to the operator or park contact so it gets fixed for the next vessel. |
| Cannot inspect at all | Treat as unrated and unknown. Anchor properly instead. |
Rigging to a mooring you have cleared
Take the pick-up, then run your own line or bridle through the mooring’s eye or thimble and back aboard, so that the load is on your gear and you can slip it without going into the water at three in the morning. Protect the bridle at every fairlead — chafe over a night of tidal reversals is real, and karst-country moorings often sit where the stream runs hard.
Set a drag alarm even though you are moored, and set the swing circle for stream direction as well as wind. In the passages between the main islands, vessels routinely lie to stream rather than to wind, and the vessel that was comfortably clear of a reef edge at slack water can be pointing at it six hours later. The anchorage planning page covers the same arithmetic for ground tackle.
Report what you find
This is the part most visiting yachts skip and it matters more than any other. The mooring network survives because the people using it feed condition information back. If you find a chafed riser or a backed-out pin, tell the dive operator working that site, tell the park contact, and tell the desk. That information is what keeps the next vessel off the reef, and it is the lowest-effort way for a visiting yacht to contribute something real to a place it is enjoying.
It also works in your favour. Operators who know a yacht reports honestly are operators who will tell that yacht which buoys were replaced last month and which are due. In Raja Ampat, where shore access and local knowledge both run on relationships, that is worth more than any published guide.
When the answer is simply no
There is a temptation, late in the day after a long leg, to take a marginal mooring because moving means another hour under way in fading light. Resist it. Raja Ampat has an enormous number of workable anchorages, and the cost of moving is an hour. The cost of a failed mooring over coral is the hull, the reef, and a conversation with the conservation authority you do not want to have.
If you would like the current picture on the specific sites in your plan, send the itinerary to the desk — mooring status is the most perishable information in the region, and we check it with people who were recently on the water rather than from a static map.
Frequently asked questions
How often are Raja Ampat mooring buoys maintained?
Maintenance is carried out by conservation programmes, park management and dive operators on their own cycles rather than by a single harbour authority, so intervals vary considerably by site. Because of that, every buoy should be inspected by the vessel using it rather than assumed to be current.
Can I report a damaged mooring in Raja Ampat?
Yes, and you should. Report the site and the specific defect to the dive operators working that location and to the park contact. Condition reporting from visiting vessels is a large part of how the network stays serviceable.
